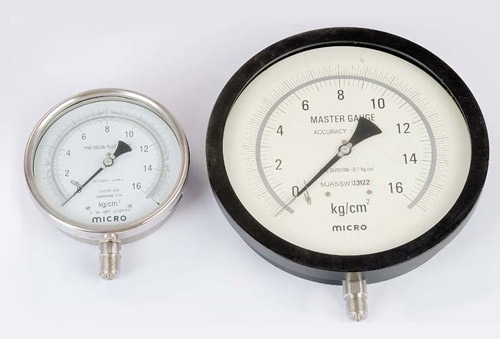

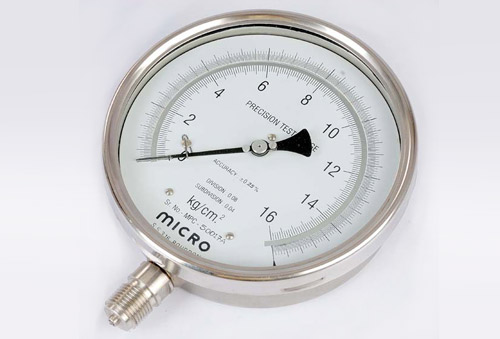

CONSTRUCTION FEATURES
| Dial Size : | 150mm & 250mm. |
|---|---|
| Accuracy : | ± 0.25% & ± 0.5% of full scale. |
| Case & Bezel (IP-65) : | SS 304 Snap Action Bayonet type & for 250mm Die cast aluminum. |
| Movement : | SS 316, High Precision with Bi-Metal Link for Temperature Compensation. |
| Pressure Element : | SS 316 ( ≤ 70 bar 'C' Type / > 70 bar Coil Type ). | Socket : | SS 316 | Dial : | Aluminum white painted with 270 degree black scale marking with mirror scale. | Pointer : | Al. Knife edge Micro zero adjustment type. | Window : | Toughened / Safety glass. | Blow Out Protection : | Back side at 0.6 Kg/cm . | Joints : | Argon arc welded. | Mounting : | Stem (Bottom), Surface, Panel Mounting, Flush Panel ( Bracket Type). | Connection : | ½" BSP / NPT. | Scale Range : | Vacuum, Compound & Pressure up to 1000 kg/cm . | Least Count : | As per standard chart accuracy ±0.25% & ±0.5%. |
APPLICATION : Used for re-calibration of general service pressure gauges or any other pressure related instruments
